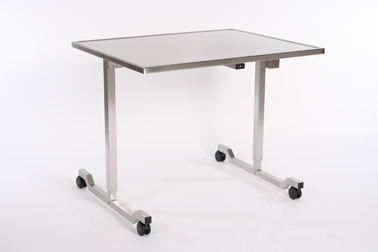

Instrument table - 100 24

The Remeda theatre instrument table are specially developed to simplify work in the operating theatre. The height of the table can easily be adjusted by pressing buttons situated under the tabletop.



The table can even be operated when the sterile drape is in position, without compromising sterility. Height adjustment can also be carried out without moving the table away from the operating table. The height adjustment is performed through a low voltage, enclosed motor/battery system.



Maintenance is virtually unnecessary, and the unit will merely require weekly recharging.



The table top are constructed from stainless steel with raised edges on the working surface. The base and pillar are constructed from stainless steel. The table is equipped with four antistatic castors.

Ref. no. Table top dim.  Height adjustment
100 24-33   1070 x 570 mm    800 - 1200 mm
100 24-34 1200 x 570 mm  800 - 1200 mm
100 24-36 1200 x 900 mm  800 - 1200 mm
100 24-38 1400 x 600 mm  800 - 1200 mm
100 24-43 1070 x 570 mm  900 - 1400 mm
100 24-44 1200 x 570 mm  900 - 1400 mm
100 24-46 1200 x 900 mm  900 - 1400 mm
100 24-48 1400 x 600 mm  900 - 1400 mm

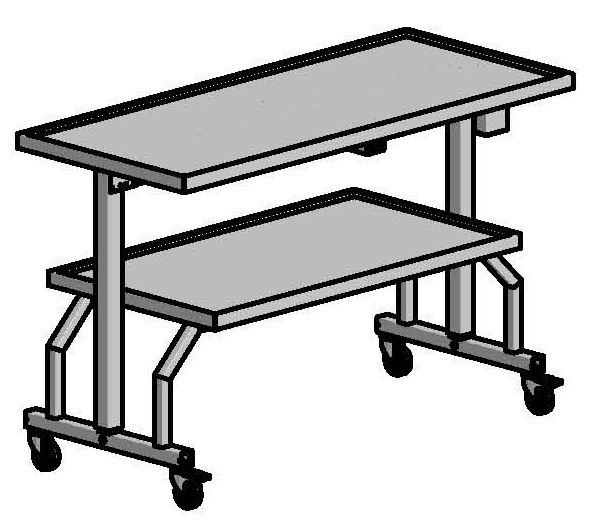

LOW SHELF

Ref.no. Table top dim.   Low shelf
100 24-U3   1070x570mm 800x520mm
100 24-U4 1200x570mm 900x550mm
100 24-U6 1400x600mm 1100x550mm
