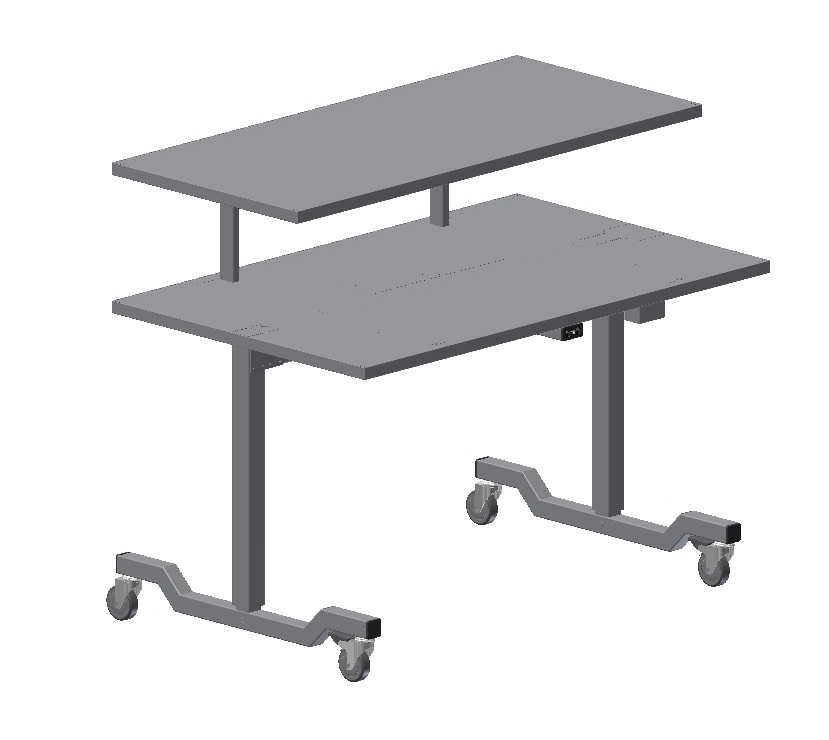

2 tier instrument / back table - 100 27































The Remeda 2 tier theatre instrument / back table are specially developed to simplify work in the operating theatre. It has the capacity to accommodate more cases then a normal instrument table thanks to the additional shelf. It is 300 mm between the two shelves. The table is also available with a lower shelf. The height of the table can easily be adjusted by pressing buttons situated under the tabletop.



The table can even be operated when the sterile drape is in position, without compromising sterility. Height adjustment can also be carried out without moving the table away from the operating table. The height adjustment is performed through a low voltage, enclosed motor/battery system.



Maintenance is virtually unnecessary, and the unit will merely require weekly recharging.



The table top are constructed from stainless steel a flat working surface. The base and pillar are constructed from stainless steel. The table is equipped with four antistatic castors.

Ref. no. Shelf size   Top shelf   Height
100 27-01   1200x750 1200x550 700-950
100 27-02 1500x750 1500x550 700-950
100 27-03 1800x750 1800x750 700-950

LOWER SHELF

Ref. no. Table Low shelf
100 24-U4   100 27-01 900x550mm
100 24-U6 100 27-02 -03   1100x550mm
