Loading trolley - 100 88

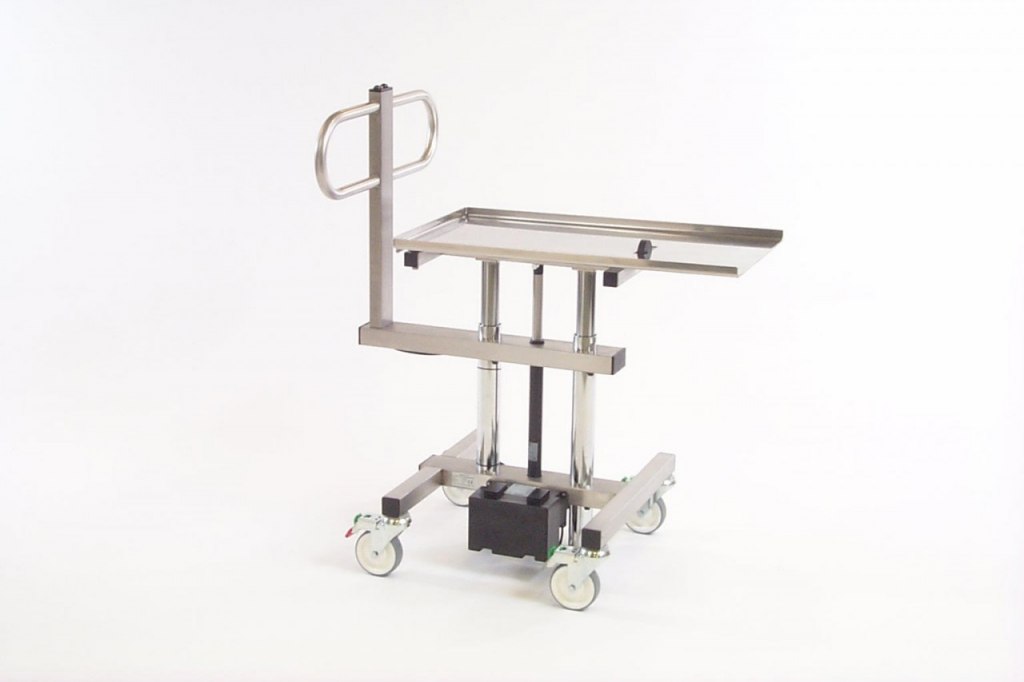

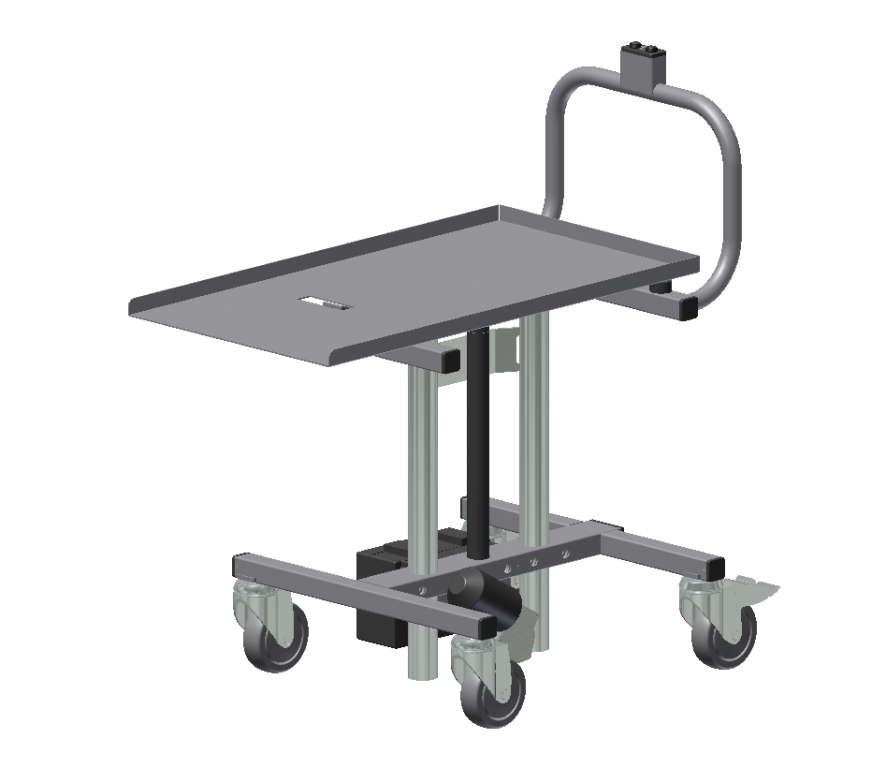

The Remeda loading trolley is specially developed to simplify the work in a sterilisation department. The height of the trolley can be adjusted so that loading/ unloading can be carried out at suitable working height. Thanks to the unique lifting system, the trolley is exceptionally easy to clean.



The height adjustment is electric and controlled by an easy operated control placed on the handle. The trolley is delivered with a recharging cable for the battery.

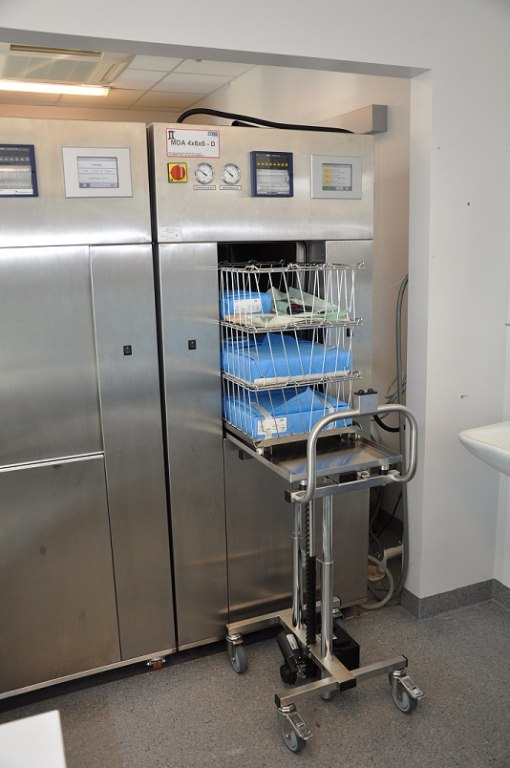

The handle is mounted on the bottom part of the trolley, and stays at normal height. The top of the trolley is designed for transportation of basket feeder our shelf rack. The top is equipped with a guiding and locking system, to facilitate locking the trolley to the autoclave chamber rails.



The trolley is manufactured in stainless steel with a frame in stainless steel profile piping. Equipped with four castors with diameter 100mm, of which 2 with brakes and 2 with direction licking.



The trolley is designed for autoclaves with square chamber opening of about 460 x 460mm. The loading height to be specified on order.

Ref. no.    Height         Chamber  Platform
100 88-01   550-850 mm   660 mm 100 88-21
100 88-02 600-950 mm 960 mm 100 88-22
100 88-11 550-850 mm 660 mm 100 88-21
100 88-12 600-950 mm 960 mm 100 88-22
