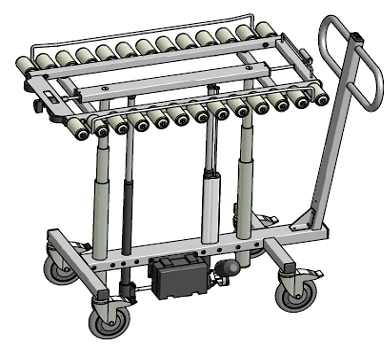

Transport trolley

The Remeda transport trolley is specially developed to simplify the work in a sterilisation department. The height of the trolley can be adjusted so that loading/ unloading can be carried out at suitable working height. Thanks to the unique lifting system, the trolley is exceptionally easy to clean.



The height adjustment is electric and controlled by an easy operated control placed on the handle. The trolley is delivered with a recharging cable for the battery.



The handle is mounted on the bottom part of the trolley, and stays at normal height. The top of the trolley is designed for transportation of basket.



The trolley is manufactured in stainless steel with a frame in stainless steel profile piping. Equipped with four castors with diameter 150mm, of which 2 with brakes and 2 with direction locking.



The trolley is also available in a fixed height version.

Ref. no. Height adjustment     Capacity, baskets
100 52-01     590 - 890 mm 4 DIN
100 52-11 640 - 990 mm 4 DIN
100 52-21 690 - 1090 mm 4 DIN
100 53-02 590 - 890 mm 6 ISO or 6 SPRI
100 53-12 640 - 990 mm 6 ISO or 6 SPRI
100 53-22 690 - 1090 mm 6 ISO or 6 SPRI
100 52-02 590 - 890 mm 6 DIN
100 52-12 640 - 990 mm 6 DIN
100 52-22 690 - 1090 mm 6 DIN
100 52-03 590 - 890 mm 8 DIN or 9 ISO or 9 SPRI
100 52-13 640 - 990 mm 8 DIN or 9 ISO or 9 SPRI
100 52-23 690 - 1090 mm 8 DIN or 9 ISO or 9 SPRI
Ref. no. Fixed height   Capacity, baskets
101 52-01     800 - 900 mm 4 STU
101 52-11 900 - 1000 mm 4 STU
101 52-02 800 - 900 mm 6 STU
101 52-12 900 - 1000 mm       6 STU
101 52-03      800 - 900 mm 8 STU
101 52-13 900 - 1000 mm     8 STU
101 52-04 800 - 900 mm 10 STU
101 52-14 900 - 1000 mm 10 STU
