The Remeda shelf rack and transfer platform is used together with a trolley or an automatic loader to carry the goods through the sterilizers. They allows goods to be pre-loaded at the packing table and is manufactured in stainless steel, where baskets, containers or packs can be placed. The shelf rack and the transfer platform is used in a circulating flow, and is returned to the clean, loading side after the sterilization process.

For further information about the products please contact Remeda »

Shelf racks & Transfer platforms

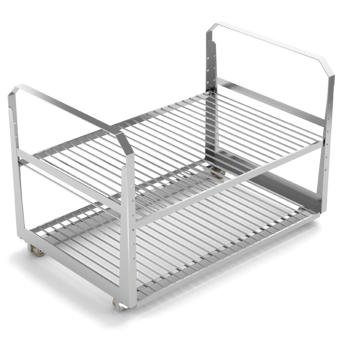

Shelf rack (with wheels)
The Remeda shelf rack with wheels is developed to fit the Remeda loading trolleys.
They are used together with Remeda's loading trolleys.


Reference
number
Length mm (inch) Width mm (inch) For trolley type
100 64-01 630 (24,8) 608 (23,9) 100 80
100 64-02 930 (36,6) 608 (23,9) 100 80
100 64-03 1260 (49,6) 608 (23,9) 100 80



Shelf rack (no wheels)
The Remeda shelf rack is developed to fit the Remeda automatic basket loaders. They can also be used together with the Remeda transport trolleys.



Reference
number
Length mm (inch) Width mm (inch) For trolley type
100 65-01 630 (24,8) 608 (23,9) 100 52
100 65-02 930 (36,6) 608 (23,9) 100 52
100 65-03 1260 (49,6) 608 (23,9) 100 52

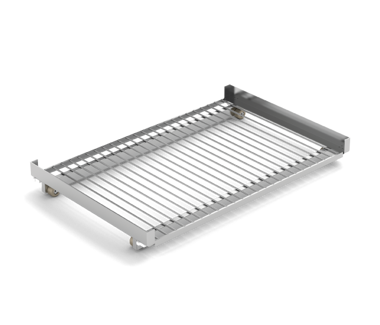

Transfer platform (with wheels)

The Remeda transfer platform with wheels is developed to fit the Remeda loading trolleys. It is used together with the Remeda loading trolleys.


Reference
number
Length mm (inch) Width mm (inch) For trolley type
100 64-11 630 (24,8) 608 (23,9) 100 80
100 64-12 930 (36,6) 608 (23,9) 100 80
100 64-13 1260 (49,6) 608 (23,9) 100 80



Transfer platform (no wheels)

The Remeda transfer platform is developed to fit the Remeda automatic basket loaders.

They can also be used together with the Remeda transport trolleys.

Reference
number
Length mm (inch) Width mm (inch) For trolley type
100 65-11 630 (24,8) 608 (23,9) 100 52
100 65-12 930 (36,6) 608 (23,9) 100 52
100 65-13 1260 (49,6) 608 (23,9) 100 52
