Remeda’s automatic loaders are intended for use in the central sterilization department to facilitate loading and
unloading of baskets and racks. Combined with Remeda’s transport trolleys, the automatic loader becomes an
excellent tool to simplify and make work more efficient in the central sterilization department.

For further information about the products please contact Remeda »

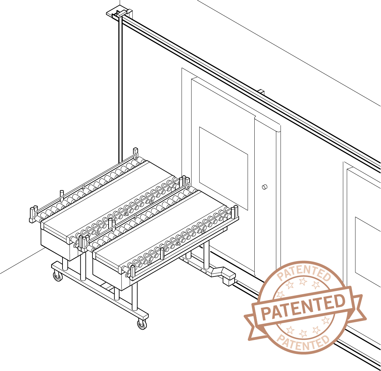

Automatic loader

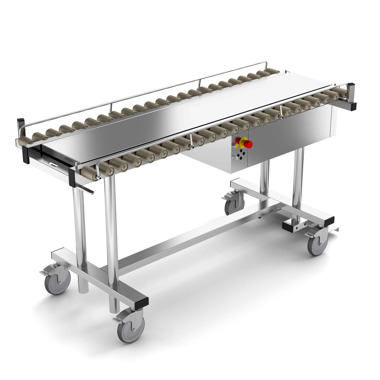

The Remeda automatic loaders are designed for loading and unloading of baskets and racks.
It fits to an autoclave with a chamber opening width of
660-700mm and the control of the loader is integrated with the control of the sterilizer.

Different combination with manual loading and automatic unloading can be done. Remeda has a wide range of loading and transport trolleys optimized for use with Remeda automatic loaders.

Reference numberSterilizer chamber dept mm (inch)Type of load
100 41-00600-700 (23,6-27,6)Basket
100 41-01900-1000 (35,4-39,4)Basket
100 41-021200-1300 (47,2-51,2)Basket
100 41-031600-1700 (63,0-66,9)Basket
100 41-041900-2000 (74,8-78,7)Basket
100 41-10600-700 (23,6-27,6)Rack
100 41-11900-1000 (35,4-39,4)Rack
100 41-121200-1300 (47,2-51,2)Rack
100 41-131600-1700 (63,0-66,9)Rack
100 41-141900-2000 (74,8-78,7)Rack

Floor loader

The Remeda floor loader is designed for loading and unloading floor and pit mounted sterilizers.

There are several different versions of floor loaders, depending on which type of sterilizers and loading transport trolleys that are used and the installation of the sterilizers.

The loader is designed to load or unload larger racks on wheels and will be built to fit the standard racks already in use at the central sterilization department.

Dual loader

The Remeda Dual loader is designed for loading/unloading baskets or racks on single door sterilizers.

The Dual loader has one loading and one unloading side. The Dual loader is also available in a Multi loader version for single door sterilizers. The control of the loader communicate with the control of the sterilizer.

Remeda has a wide range of loading and transport trolleys optimised for use with the Dual loader.

Multi loader

The Remeda Multi loader is a fully automated system which use single point loading and unloading of baskets or racks. It is designed to minimize the personnels handling of the goods and can work in a closed working environment without the need of supervison.

The Multi loader’s shuttle collect goods from one or several conveyors and load it into the sterilizer when it is available.

The integrated control system control the number of cycles of each sterilizer and select the sterilizer with the least amount of cycles. This is done to make sure that all the sterilizers are used the same amount.
The control of the loader communicate with the control of
the sterilizer.

The Remeda Multi loader is suited for sterilization department where there is a space restriction or when the sterilisers are situated in a closed space.

Different combination with multi loading and automatic unloading can be done. Remeda have a wide rang of loading and transport trolley´s optimised for use with the Multi loader.
